TCP/IP SETTING MANUAL
In this section, you are assumed to have correctly identified the IP address for the ULearn System Server. Therefore, you must produce a manual on how to configure the IP address on the server.
Step 1: Open Control Panel at the Search bar

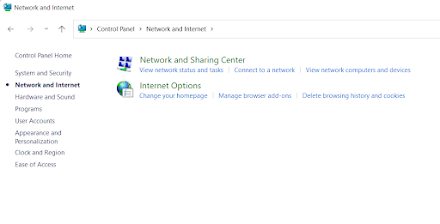

Step 2: Click Network and Internet
Step 3: Choose the Network and Sharing Center
Step 4: There will display what type of internet connection being used. For this project, we use Wi-Fi connection. Click on the "Wi-Fi (Kediaman_Pelajar)"
Step 5: A pop-up Wi-Fi Status window will be appear. Click on the Properties button
Step 6: A pop-up Wi-Fi Properties will be displayed. Choose "Internet Protocol Version 4 (TCP/IPv4)
Step 7: A new pop-up will appear. Tick on the "Use the following IP address" and "Use the following DNS server addresses". Then, enter the IP address and subnet mask that been obtained from Subnetting Calculation.
IP address: 172.16.160.5
Subnet mask: 255.255.224.0
Default gateway: 172.16.160.1
Step 8: For the Preferred DNS server, the address should be the same with the Default Gateway which is 172.16.160.1
The Alternate DNS server, we use the Google DNS server which is 8.8.8.8
Step 9: Tick the "Validate settings upon exit". Then, click "OK" button.
Step 10: A pop-up window will appear and click "OK" button again
Step 11: Windows Network Diagnostics appeared to show problems with the new configuration of IP address. Lastly, click the "Close" button
